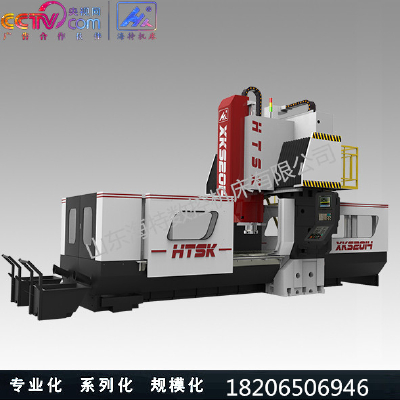

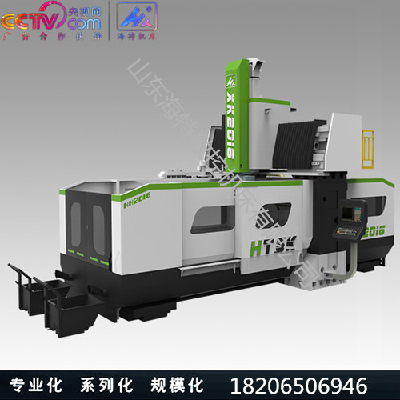

XK1610 Longmen processing center

Characteristics of machine tool:

XK1610 CNC Longmen milling machine is a set of advanced technology in one of the mechanical processing equipment, mainly used for plane, surface and hole machining. Widely used in machinery manufacturing industry in various type, box type, a class of complex parts such as rough and finish machining, the machine can realize the vertical horizontal milling head (Y axis) and vertical motion (Z axis) and the worktable longitudinal motion (X axis) three axis. Used for milling, boring, drilling, tapping, reaming, rigid countersinking process etc..

Main structure:

The main basis of the machine bed, work table, column beam, transverse slide, milling head ram, adopt high strength cast iron, has good shock absorption, thermal stability, high strength and rigidity of the whole structure.

Main configuration

1 control system: FANUC CNC control system.

2 spindle motor: FANUC servo spindle motor.

3.XYZ three axis drive motor: Japan FANUC

4.XYZ three axis servo drive: Japan FANUC (Z axis with brake)

5 spindle: Taiwan Chun lung 6000rpm spindle.

6 wire rod: Taiwan law court ball screw, C3 level.

7 Changzhou Ding booster cylinder.

8 Japanese NSK bearings, P4 class.

9 electric cabinet heat exchange constant temperature system.

10 hand held electronic pulse.

11. Spindle oil cooler.

12 coupling

13. (Y to 4 machine guide)

14 nitrogen balance system

15 double screw type pin device

16 double oil pump automatic lubricating and lubricating alarm device.

Main parameters:

Model unit XK1610

X axis stroke mm 1600

Y axis stroke mm 1000

Z axis stroke mm 700

Longmen max width mm 1200

Table 1800x860 mm

Working table load g K 3000

Spindle end face to work table 150-850 mm

T type slot number * slot width 5*22/170 mm

Spindle taper BT50 type

Max speed 4000/6000 rpm

Toothed belt 1:1.5

Spindle power 15/18.5 kw

XYZ fast moving 12/12/10 M

Positioning accuracy 500/ 0.005 mm

Repeated positioning precision 500/ 0.003 mm

Nitrogen balance system

Machine tool outline dimension (about) 5000*2600 mm

Machine net weight (approximately) T 13

Main performance:

1 keyboard control: simple, convenient, easy to learn the split keyboard operation, users can quickly and flexibly grasp the use of equipment, independent of the stronger.

2 intelligent processing cross-border protection function: to prevent the mechanical collision phenomenon caused by the processing rate over the design layout.

3, vacuum adsorption device: cleaning system in the process of sucking sawdust and broken Tim, keep the table clean on equipment maintenance; adsorption system to replace the previous mechanical plate fixed to improve the processing time for handling outside the plate.

4 intelligent processing speed control: can control the processing speed, and truly improve the processing efficiency, director of tool life, improve the rate of finished products.

5 advanced file preprocessing function, to help users to correct the error in the processing file, and can be well compatible with domestic and foreign processing code generation of a variety of software.

6 advanced 3D curve prediction algorithm, the line is smooth, to ensure the running speed and accuracy of the curve.

7 based on the platform of Embedded CNC system, unlimited upgrade function. The anti interference design of hardware and software synchronization to ensure the reliable operation of the system time.

8 has the breakpoint, the power cut continues to carve the function, has the return to the origin automatic error correction function, the effective guarantee in the long time work the processing precision.

The machine adopts 9 steel seamless welded, strong steel, no deformation; Japan FANUC servo motor, the torque is large and has a perfect security system.

Installation conditions

A, temperature

Operating temperature: room temperature 20 20

Storage handling: -30 C ~ 50 C

B, humidity

The following 75%: continuous (without dew)

Short time: 95% (no dew)

C, installation site conditions

1 not affected by external vibration.

2 unaffected by corrosive gases.

3 avoid direct sunlight.

4 to avoid direct contact with the outside air, gas and the temperature of cold and hot air.

5 avoid the heating and other heat source near the machine tool.

6 to reduce dust (to avoid casting, welding, sheet metal workshop, etc.).

7 to avoid leakage, water immersion.

8 avoid electrical noise.

D and power tools: 3 AC380V 10% 50HZ 1HZ ~ 10%.
