Characteristics of machine tool:

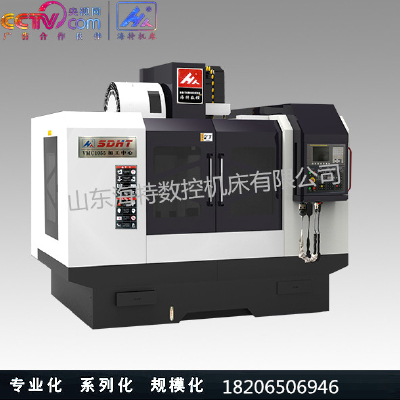

Xh1580 hard rail vertical machining center is Shandong Hatal CNC Machine Tool Co. Ltd. to introduce a new generation of advanced CNC machine tools production technology, the rigid structure of the machine tool main unique firm durable, through repeated simulation and calculation of engineering mechanics, body structure design firm, achieve rigid multiplication and streamlined quality engineering requirements. The moving rail comprehensive hardening treatment, precision grinding collocation, combination of quality and satisfactory accuracy. Not only applicable to the plate type, plate type, shell type, precision parts of the processing, but also suitable for mold processing. Machine tool with automatic tool exchange system, fully enclosed shield, automatic lubrication system, cooling system, automatic chip removal device, and portable manual operation device. A fixture part can finish milling, boring, drilling, reaming, reaming, tapping and other machining processes, has a high degree of automation, high reliability, simple operation, convenient and comfortable, beautiful appearance, high degree of mechanical and electrical integration advantages.

Main structure

The machine is fixed with a single column, and the working table moves the structure. Mainly consists of bed, column, table, table, horizontal spindle, wire rod, lubrication system, cooling system, CNC operation panel and electronic control system components.

Main configuration

1 control system: FANUC CNC control system.

2 spindle motor: FANUC servo spindle motor.

3.XYZ three axis drive motor: Japan FANUC

4.XYZ three axis servo drive: Japan FANUC (Z axis with brake)

5 spindle: Taiwan Chun lung 8000rpm spindle.

6 wire rod: Taiwan law court ball screw, C3 level.

7 Changzhou Ding booster cylinder.

8 Taiwan sirgel hats knife

9 Japanese NSK bearings, P4 class.

10 electric cabinet heat exchange constant temperature system.

11 hand held electronic pulse.

12. Spindle oil cooler.

13 coupling

14. (Y to 4 machine guide)

15 double oil pump automatic lubricating and lubricating alarm device.

Main technical parameters:

Model XH1580

X coordinate stroke (mm) 1500

Y coordinate stroke (mm) 800

Z coordinate stroke (mm) 700

Table specification (length * width) (mm) 1700 * 800

Table maximum load (kg) 1500

Spindle center line to the front of the column guide rail distance (mm) 800

Spindle end face to the table plane distance (mm) 170 ~ 870

X, Y, Z cutting feed (mm/min) 1-4000

X, Y, Z rapid feed rate (m/min) 16

Spindle speed range (r/min) 50 ~ 6000

Spindle taper BT50

Spindle motor (kw) 15

X, Y, Z servo motor (kw) 3.0/3.0/3.0

Table T slot slot number (mm) * * slot slot width 5/18/135

Repeated positioning accuracy (300mm) 0.005

Positioning accuracy (300mm) 0.0075

Using source gas pressure (MPa) 0.6-0.8

Machine tool profile (H * W * L) (mm) 3700*2700

Machine weight (kg) 11000

Main performance:

1 keyboard control: simple, convenient, easy to learn the split keyboard operation, users can quickly and flexibly grasp the use of equipment, independent of the stronger.

2 intelligent processing cross-border protection function: to prevent the mechanical collision phenomenon caused by the processing rate over the design layout.

3, vacuum adsorption device: cleaning system in the process of sucking sawdust and broken Tim, keep the table clean on equipment maintenance; adsorption system to replace the previous mechanical plate fixed to improve the processing time for handling outside the plate.

4 intelligent processing speed control: can control the processing speed, and truly improve the processing efficiency, director of tool life, improve the rate of finished products.

5 advanced file preprocessing function, to help users to correct the error in the processing file, and can be well compatible with domestic and foreign processing code generation of a variety of software.

6 advanced 3D curve prediction algorithm, the line is smooth, to ensure the running speed and accuracy of the curve.

7 based on the platform of Embedded CNC system, unlimited upgrade function. The anti interference design of hardware and software synchronization to ensure the reliable operation of the system time.

8 has the breakpoint, the power cut continues to carve the function, has the return to the origin automatic error correction function, the effective guarantee in the long time work the processing precision.

The machine adopts 9 steel seamless welded, strong steel, no deformation; Japan FANUC servo motor, the torque is large and has a perfect security system.

Installation conditions

A, temperature

Operating temperature: room temperature 20 20

Storage handling: -30 C ~ 50 C

B, humidity

The following 75%: continuous (without dew)

Short time: 95% (no dew)

C, installation site conditions

1 not affected by external vibration.

2 unaffected by corrosive gases.

3 avoid direct sunlight.

4 to avoid direct contact with the outside air, gas and the temperature of cold and hot air.

5 avoid the heating and other heat source near the machine tool.

6 to reduce dust (to avoid casting, welding, sheet metal workshop, etc.).

7 to avoid leakage, water immersion.

8 avoid electrical noise.

D and power tools: 3 AC380V 10% 50HZ 1HZ ~ 10%.
