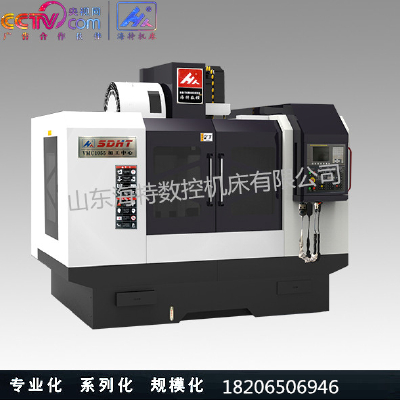

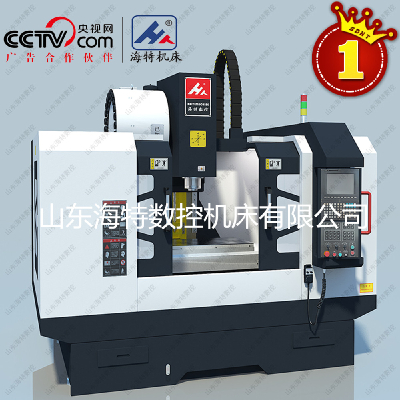

VMC850 wire and rail processing center

Characteristics of machine tool:

Vertical machining center is Shandong Hatal CNC Machine Tool Co. Ltd. to introduce a new generation of advanced CNC machine tools production technology, the rigid structure of the machine tool main unique firm durable, through repeated simulation and calculation of engineering mechanics, body structure design firm, achieve rigid multiplication and quality streamlined engineering requirements. The moving rail comprehensive hardening treatment, precision grinding collocation, combination of quality and satisfactory accuracy. Not only applicable to the plate type, plate type, shell type, precision parts of the processing, but also suitable for mold processing. Machine tool with automatic tool exchange system, fully enclosed shield, automatic lubrication system, cooling system, automatic chip removal device, and portable manual operation device. A fixture part can finish milling, boring, drilling, reaming, reaming, tapping and other machining processes, has a high degree of automation, high reliability, simple operation, convenient and comfortable, beautiful appearance, high degree of mechanical and electrical integration advantages.

Main structure

The machine is fixed with a single column, and the working table moves the structure. Mainly consists of bed, column, table, table, horizontal spindle, wire rod, line rail, lubrication system, cooling system, CNC operation panel and electronic control system components.

Main configuration

1 control system: FANUC CNC control system.

2 spindle motor: FANUC servo spindle motor.

3.XYZ three axis drive motor: Japan FANUC

4.XYZ three axis servo drive: Japan FANUC (Z axis with brake)

5 spindle: Taiwan Chun lung 8000rpm spindle.

6 wire rod: Taiwan law court ball screw, C3 level.

The 7 line rail rail line in Taiwan on the heavy silver roller

8 Changzhou Ding booster cylinder.

9 Taiwan sirgel hats knife

10 Japanese NSK bearings, P4 class.

11 electric cabinet heat exchange constant temperature system.

12 hand held electronic pulse.

13. Spindle oil cooler.

14 coupling

15. (three machine shaft roller rail line)

16 double oil pump automatic lubricating and lubricating alarm device.
